Root Blower is a type of positive displacement pump that has a design like a Rotary Lobe pump. Root Blower is also called as PD Blower or Positive Displacement Blower. In contrast to pumps which are generally used to transfer liquid fluids, Root Blowers are used to transfer gas fluids (air). In general, the Root Blower design has two lobes (impellers) in the form of a figure eight. In the Root Blower there is a Gearbox which functions to move the Rotor (Driver/Driven) so that the two Lobes/Impellers do not touch each other.
Air from outside enters through the suction side and is pressed inside the housing/casing by the rotation of the rotor/impeller towards the exhaust side (outlet) according to the working pressure of the system.
Generally the maximum pressure that can be generated by a Root Blower is not more than 1 bar.g
Therefore, for higher pressures, you should use an Air Compressor (Air Compressor).

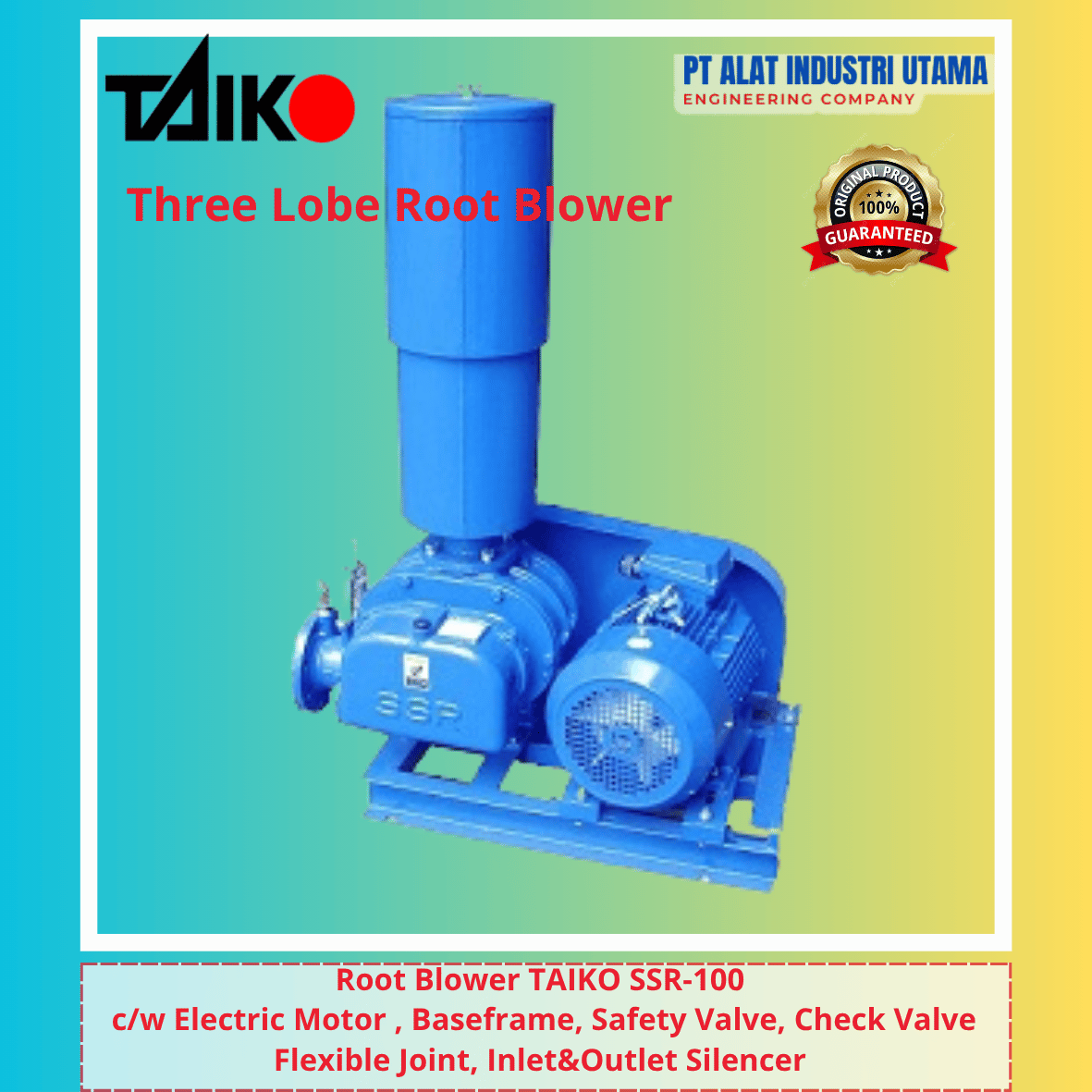

Type SSR
Taiko Blower Three Lobe model SSR merupakan produk baru yang dikembangkan dengan mengadopsi teknologi yang inovatif, dan pengalaman panjang bertahun-tahun dalam bidang manufaktur Blower model Three Lobe Root Rotary Blower.
Blower ini memiliki peningkatan efisiensi volumetric dan menghasilkan kapasitas yang besar sesuai dengan tekanan kerjanya.
Blower dengan efisiensi yang tinggi menghasilkan panas yang rendah dari blower itu sendiri sehingga dapat beroperasi dengan baik pada kondisi kering sekalipun pada tekanan kerja sebesar 58.8 kPa.
Spesifikasi Type SSR
– Diameter (Bore): DN 50 sampai DN 200
– Kapasitas : 0.8 – 56 m3/min
– Tekanan : 0.1 – 0.6 kgf/cm2
– Daya Motor : 0.75 – 110 kW
Standard Accessories
– Baseframe
– V-Belt Cover
– Pulley Blower dan Pulley Motor
– V-Belt
– Suction and Discharge Silencer ( c/w air filter)
– Safety valve
– Pressure gauge
– Lubricating oil
– Anchor Bolt
– Adapter

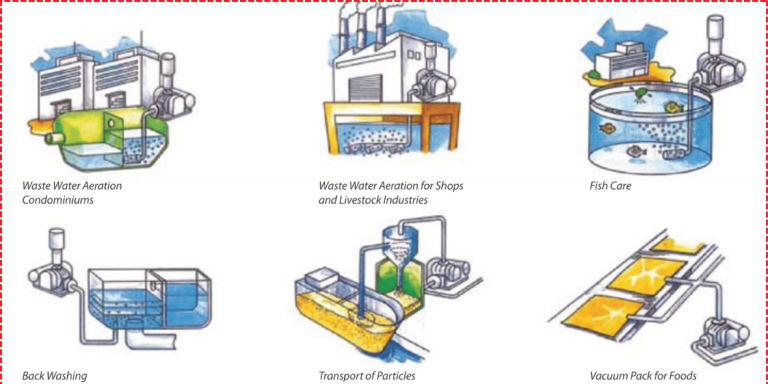

Aplikasi Root Blower Taiko di industri :
1. Waste Water Treatment Plant
Blower Taiko banyak dijumpai pada pengolahan air limbah di industri terutama pada kolam aerasi.
2. Effluent Treatment Plant / Sewage Treatment Plant
3. Tambak Udang (Fish Aeration)
